Springers - Van - J951®

We have created the reference J951® in our "Springers" range. This play equipment is accessible from 2 years. It can accommodate up to 10 users.

The size of the module is: 2.29 m length, 1.36 m width, 1.93 m. high. The free fall height (FFH) is 0.60 m.

10 play functions

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x2

A great exercise for developing motor skills and abilities in young children while having fun.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Thinking x1

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x2

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Swinging and rocking x1

It allows children to leave their stable position and experiment with uncoordinated movements.

Specifications

Age range:	2+
Number of users:	10 users
FFH :	0.60 m
Size:	2.29 x 1.36 x 1.93 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00

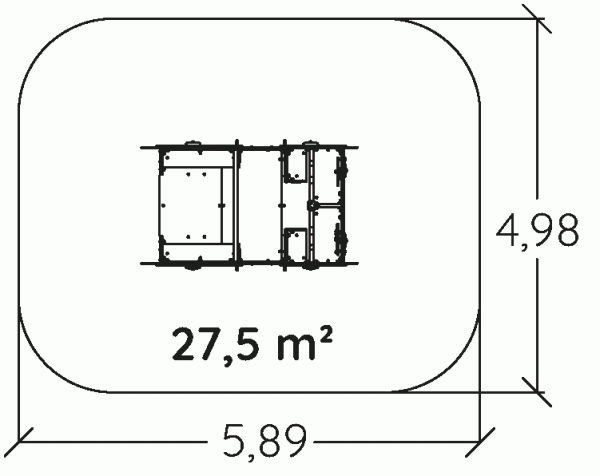

Surface:	27.50 m2
Total weight:	300.60 kg
Weight of the heaviest element:	13.57 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

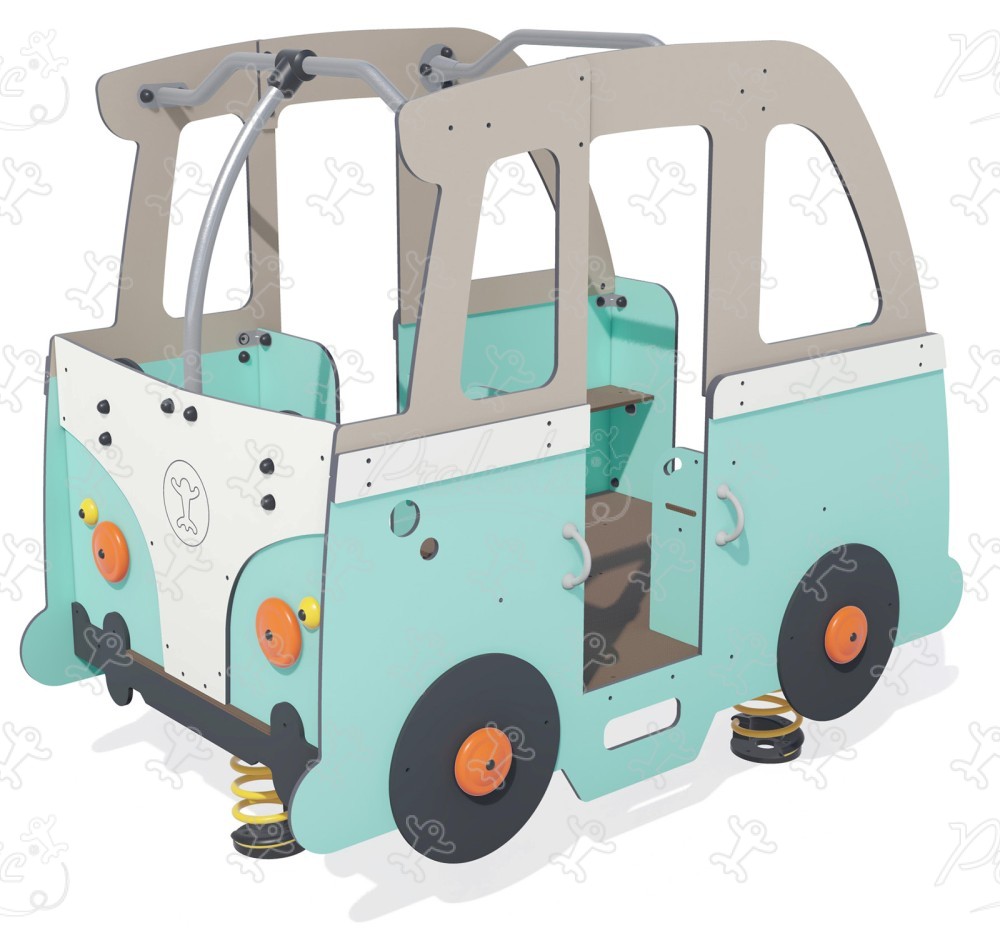

Van J951® playgrounds moving equipment springers image 3d

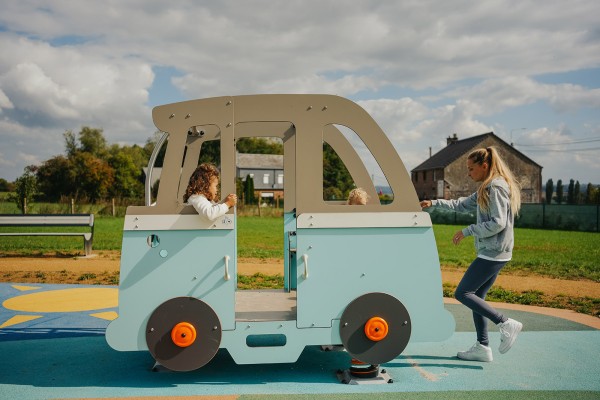

Van J951® playgrounds moving equipment springers image photo

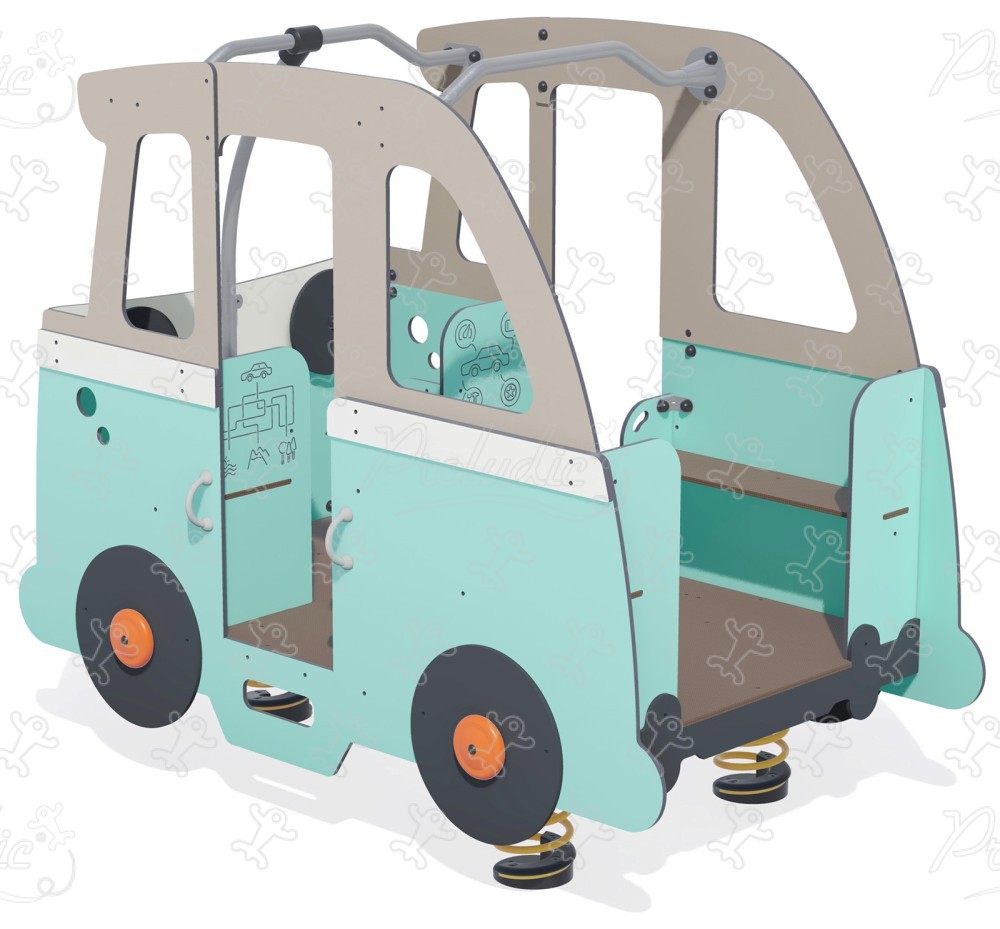

Van J951® playgrounds moving equipment springers image side view

Van J951® playgrounds moving equipment springers image view from above

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the seats are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more
