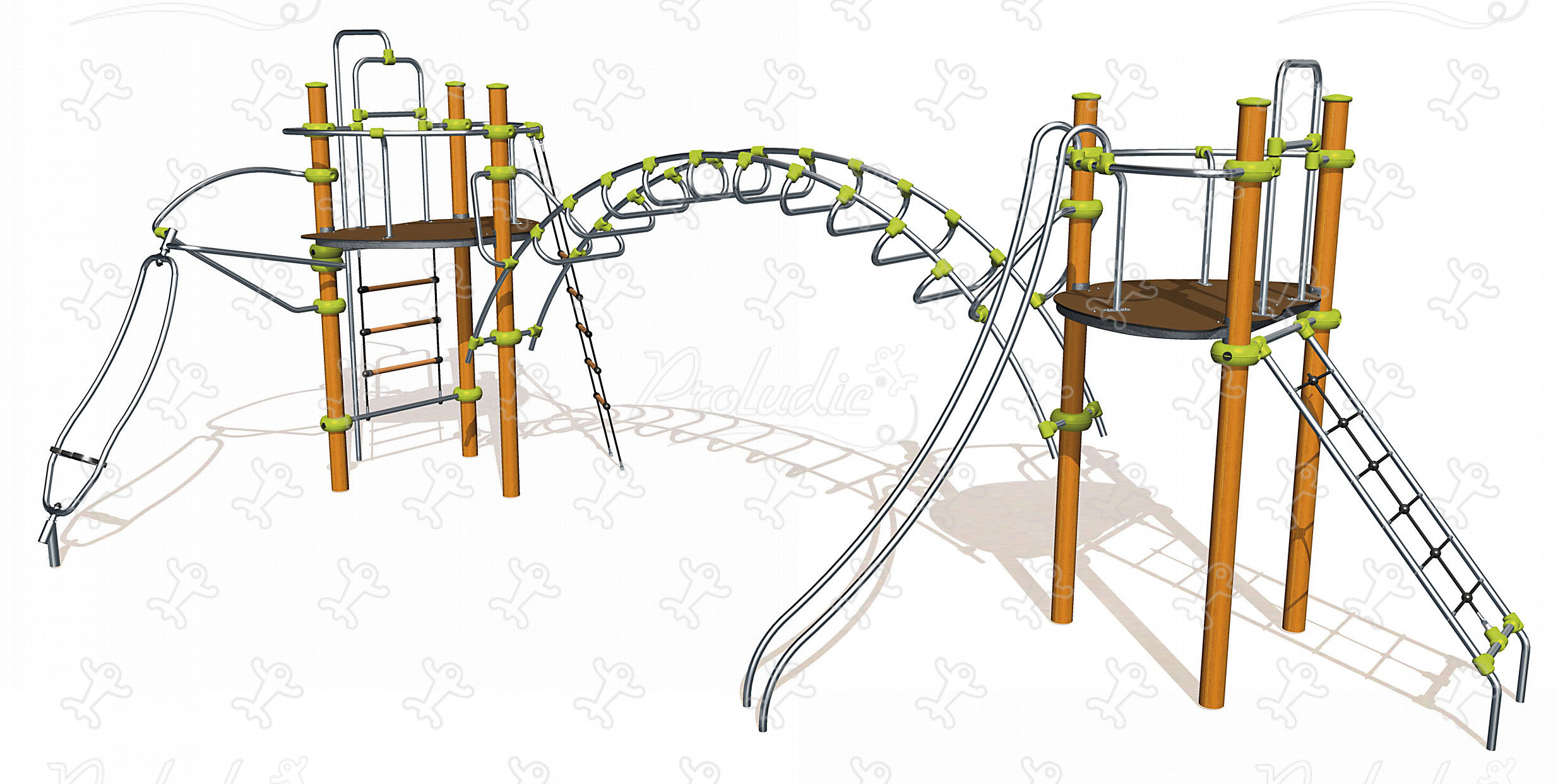

We have created the reference J2536 in our "Ixo" range. This play equipment is accessible from 6 years. It can accommodate up to 21 users.
The size of the module is: 8.67 m length, 4.38 m width, 3.40 m. high. The free fall height (FFH) is 2.40 m.
Proludic UK
We have created the reference J2536 in our "Ixo" range. This play equipment is accessible from 6 years. It can accommodate up to 21 users.
The size of the module is: 8.67 m length, 4.38 m width, 3.40 m. high. The free fall height (FFH) is 2.40 m.
Age range: | 6+ |
Number of users: | 21 users |
FFH : | 2.40 m |
Size: | 8.67 x 4.38 x 3.40 m |
Number of installers: | 2 |
Installation time: | 22:00:00 |
Concrete volume: | 0.70 m3 |
Surface: | 76.50 m2 |
Total weight: | 548.24 kg |
Weight of the heaviest element: | 54.21 kg |
Repairability
9.48 /10
The 125mm round posts are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The caps are made of injection moulded polyamide. Read more
Injection moulded polyamide fixings connect the posts with the platforms and the various play features.
The tubes are made of 40mm, 60mm and 101.6mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.
The seat is made of shock absorbing moulded honeycomb rubber.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
