Origin’ themed equipment - Whale - J49117®

We have created the reference J49117® in our "Origin’ themed equipment" range. This play equipment is accessible from 2 years. It can accommodate up to 70 users.

The size of the module is: 15.31 m length, 4.85 m width, 5.04 m. high. The free fall height (FFH) is 1.77 m.

Standard Product

Complete documentation, standard lead times, TÜV certification issued.

47 play functions

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Getting across x4

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x5

Role plays promote the child's intellectual and social skills.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x6

By playing together, children learn how to interact with other personalities and behaviors.

Resting x3

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x6

A great exercise for developing motor skills and abilities in young children while having fun.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x2

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Tactile stimulation x6

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x5

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Specifications

Age range:	2+
Number of users:	70 users
FFH :	1.77 m
Size:	15.31 x 4.85 x 5.04 m

Equipment installation

Number of installers:	3
Installation time:	30:00:00
Concrete volume:	2.80 m3
Surface:	125.00 m2
Total weight:	4386.79 kg
Weight of the heaviest element:	4000.00 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Whale J49117® playgrounds origin', wooden large scale projects origin’ themed equipment video

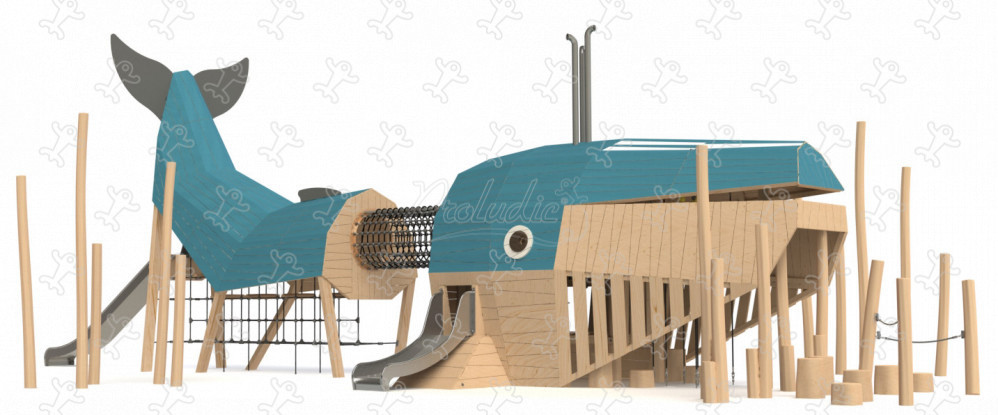

Whale J49117® playgrounds origin', wooden large scale projects origin’ themed equipment image 3d

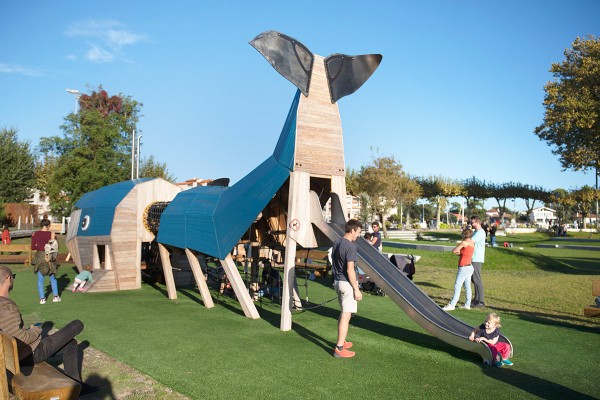

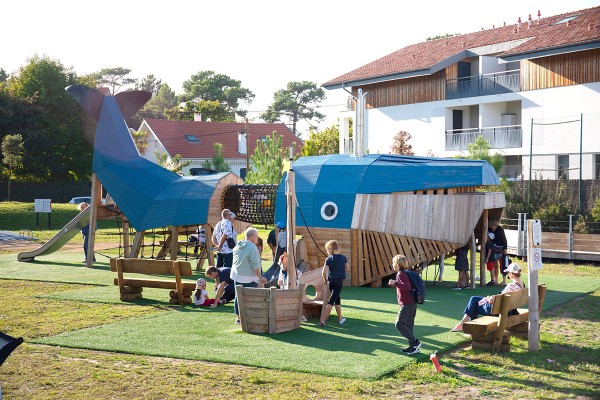

Whale J49117® playgrounds origin', wooden large scale projects origin’ themed equipment image photo

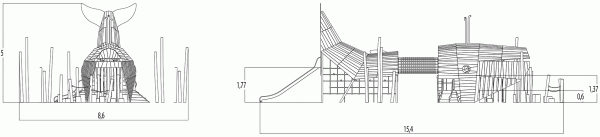

Whale J49117® playgrounds origin', wooden large scale projects origin’ themed equipment image side view

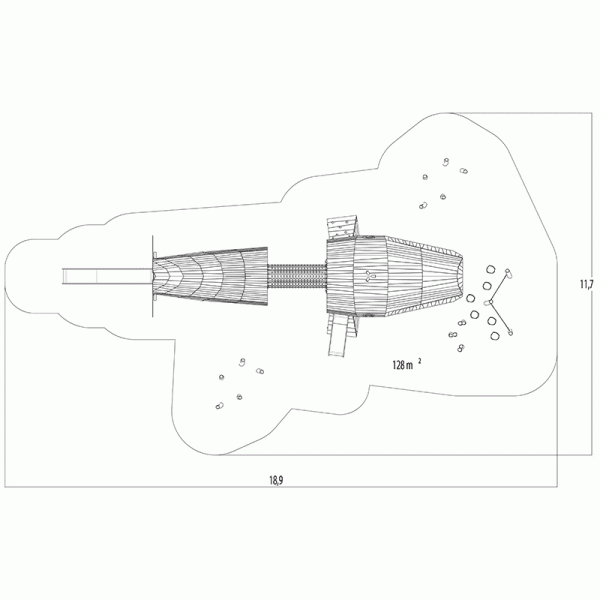

Whale J49117® playgrounds origin', wooden large scale projects origin’ themed equipment image view from above

Materials

The different posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

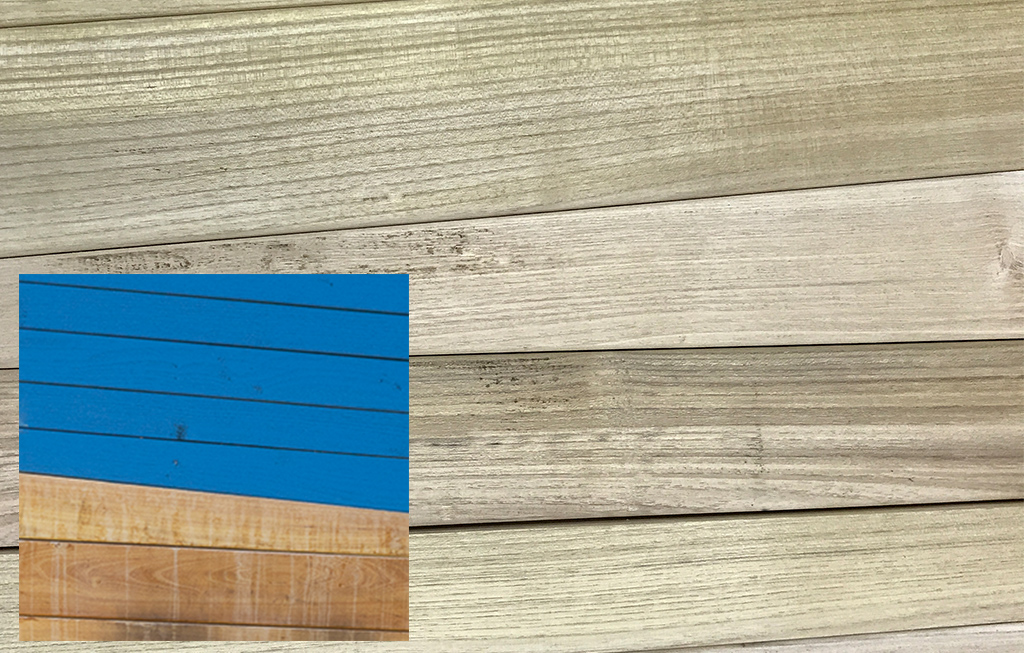

The boards are made from natural robinia wood or Douglas fir (plank sizes: 22 and 27mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
